Sunshine Skyway Bridge (Florida, USA) - the longest concrete bridge in the world
Where is located Sunshine Skyway Bridge?
Address of Sunshine Skyway Bridge is St. St. Petersburg and Bradenton, Florida, USA
show on map
When was built Sunshine Skyway Bridge?
Built date of Sunshine Skyway Bridge is April 1987 - completion of construction
May 10, 1980, construction begins
Facts, informations and history of Sunshine Skyway Bridge
The Sunshine Skyway Bridge, also known as the "Skyway", is a monumental structure that connects the cities of St. Petersburg and Terra Ceia, Florida crossing the wide mouth of Tampa Bay. Since its completion in 1987, this impressive piece of engineering has aroused admiration not only for its functionality, but also for its aesthetics. Let's take a closer look at this fascinating structure, which is one of the most important bridges in the world.
History and background of the bridge's construction
The history of the Sunshine Skyway Bridge is full of drama. This is not the first bridge to be built in this place. Previously, the wide mouth of Tampa Bay was crossed by a four-mile bridge that did not stand the test of time. On May 9, 1980, during a violent storm, the freighter Summit Venture hit the bridge, causing a disaster. More than 250 meters of the structure collapsed into the water, killing 35 people, including motorcyclists and bus passengers. This tragic event became the catalyst for the construction of a new, safer bridge.

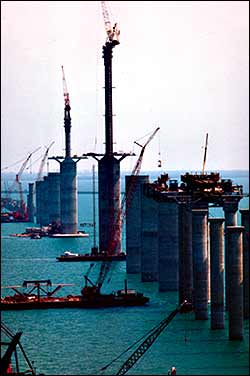

The Florida Department of Transportation responded immediately, beginning construction on a new bridge just one day after the disaster. The new structure was supposed to not only meet higher safety standards, but also delight with its modern aesthetics. The project used over 300 pre-cast concrete segments, which were connected with high-strength steel cables, creating one of the most durable bridges of its time.
Unique architecture and technology

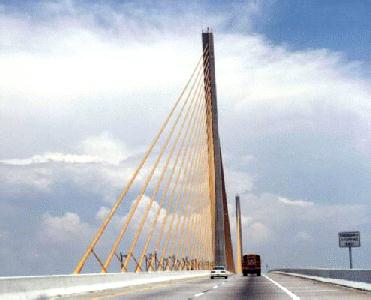

The Sunshine Skyway Bridge is best known for its modern architecture. The bridge is the world's longest cable bridge made of concrete and its total length is approximately 6.7 kilometers. What distinguishes Sunshine Skyway from other bridges is its color scheme. The cables supporting the structure are painted light yellow, which gives the bridge a distinctive look and makes it easily recognizable.
The bridge's structure is based on 21 huge steel cables that carry the road. These cables consist of thinner nine-inch wires that connect to create a strong and flexible support. The bridge's roadway rises 50 meters above the water, allowing larger ships to pass freely to and from the Port of Tampa. The longest single span of the bridge is 365.7 meters long, which is an impressive engineering feat.
To ensure the safety of the bridge against possible collisions with ships, large concrete islands called "dolphins" were built under each of the pillars. These structures, designed by Parson Brinkerhoff, can withstand the impact of a ship weighing 87,000 tons traveling at a speed of 10 knots. This additional protection ensures that the bridge will be durable and safe for many years.
Meaning and rewards
The Sunshine Skyway Bridge is not just a bridge; it is a symbol of modern engineering and architecture. Since opening to the public in 1987, the bridge has won a dozen engineering and design awards. Its unique design and the use of modern technologies have made it a role model for other structures of this type around the world.
This bridge is also a key element of the region's infrastructure. Approximately 20,000 cars pass through its four roadways every day, making it one of the most important transportation connections in this part of Florida. For residents and tourists alike, the Sunshine Skyway Bridge also offers unforgettable views of Tampa Bay, making every trip across the bridge a unique experience.
Dimensions and technical specifications
Sunshine Skyway Bridge impresses with its dimensions and technical specifications. As already mentioned, the total length of the bridge is approximately 6.7 kilometers, and the longest span is 365.7 meters long. The bridge's roadway is 50 meters above the water level, which allows even the largest ships to pass freely.
The bridge consists of 21 huge steel cables that carry the road. Each of these cables consists of nine-inch conductors that together create a strong and flexible structure. The bridge's roadway is 10 meters wide, which allows for free movement of cars in both directions. Approximately 20,000 cars cross the bridge daily, demonstrating its importance as a key transport link in the region.
Curiosities and impact on the local community
The Sunshine Skyway Bridge is not only a technical masterpiece, but also a source of many interesting facts and anecdotes. This bridge is one of the most popular bridges built after 1970, which is due not only to its functionality, but also to its aesthetics. The bridge's bright yellow cables have become its trademark, resembling the taxis that characterize many American cities.
Despite its functionality, this bridge also has a dark side. Since its opening, there have been numerous suicide cases reported on the Sunshine Skyway Bridge. In response, authorities installed emergency phones and signs encouraging people in crisis to seek help. This shows that even the most beautiful and modern structures can have their dark sides.
For the local community, the Sunshine Skyway Bridge is not only an important transport connection, but also a symbol of rebirth after the tragedy of 1980. This bridge is a testament to the determination and skill of the engineers who managed to create something unique from the ashes of the disaster. It is a place that connects people and regions, at the same time being a testimony of human ingenuity and determination.
Challenges and future
While the Sunshine Skyway Bridge is a modern engineering marvel, it is not without its challenges. In 2011, inspectors discovered that one of the 536 horizontal cables connecting 76 hollow columns had been severed due to corrosion. This discovery prompted a closer inspection, which revealed several other cables potentially at risk of damage. In response, the authorities took remedial action to ensure the long-term durability and safety of the bridge.
The future of the Sunshine Skyway Bridge appears bright, despite the challenges it faces. This bridge remains a key piece of Florida's infrastructure, and its aesthetics and functionality continue to attract tourists and residents. As technology advances, you can expect that further steps will be taken to modernize and maintain the bridge to ensure its durability for decades to come.
Summary
Sunshine Skyway Bridge is more than just a bridge. It is a symbol of modern engineering that connects regions and people, at the same time being a testimony of human determination and the ability to transform tragedy into something beautiful and functional. Its impressive dimensions, unique architecture and rich history make it one of the most important bridges in the world. Despite the challenges it faces, the Sunshine Skyway Bridge remains a key piece of Florida's infrastructure, inspiring generations of engineers and architects.
Architect of Sunshine Skyway Bridge
Construction/building type
Building Sunshine Skyway Bridge is of type Cable bridge
Architectural style
Architectural style of Sunshine Skyway Bridge is Modern
Modern architectural style is a style characterised primarily by simple and regular forms, a lack of ornamentation and the use of modern building materials. It is significantly different from other architectural styles, such as Baroque, Gothic or Renaissance, where more complex forms and rich ornamentation predominated. ... czytaj więcej.
Other dimensions, parameters and frequently asked questions
How many meters have Sunshine Skyway Bridge?
Sunshine Skyway Bridge have length 8,851.4 meters
What material is the building made of?
Sunshine Skyway Bridge is made of the following materials: Steel, concrete
Cost
Build cost of Sunshine Skyway Bridge is 244 million dollars
Other names
The building is also known by other common names or in the original language, i.e. Skyway
